Platform Troubleshooting

Autoscaling failures

0/7 nodes are available: 7 Insufficient memory


0/7 nodes are available: 7 Insufficient memory. preemption: 0/7 nodes are available: 1 Insufficient memory, 6 No preemption victims found for incoming pod.

Pods are stuck in Pending state.

Total memory requests for pods have exceeded the maximum memory that is allowed as part of node autoscaling in the cluster.

Resolution

Update config.yaml to increase the memory limit of the cluster autoscaling. Example:


cluster:
  gcp:
    autoscaling:
      cpuCores: 30
      memoryGb: 140

After the limits have been applied to the cluster, the pod should transition from Pending to Running state.

0/7 nodes are available: 7 Insufficient cpu


0/7 nodes are available: 7 Insufficient cpu. preemption: 0/7 nodes are available: 1 Insufficient cpu, 6 No preemption victims found for incoming pod.

Pods are stuck in Pending state.

Total cpu requests for pods have exceeded the maximum cpu that is allowed for node autoscaling.

Resolution

Update config.yaml to increase the cpu limit of the cluster autoscaling. Example:


cluster:
  gcp:
    autoscaling:
      cpuCores: 60
      memoryGb: 140

Node Imbalance

There are times where a node can be throttled e.g. 96% memory usage when other nodes have more than enough capacity to accommodate extra workloads.

It is highly likely that pods running on that node do not have memory/cpu requests set. This causes kube scheduler to place significant load on one node as it uses the requests to target what nodes pods should be placed on.

Resolution

Set resource requests for your application workloads to allow the kube scheduler better place your pods on nodes with appropriate capacity. For example if you request 2Gi memory for your pod, the scheduler will guarantee finding a node that has that capacity.

Deployment Failures

Local port [xxxx] is not available

A local port is used locally on the GitHub agent to IAP proxy to the Kubernetes API server. Sometimes a randomly selected port is not available.

Logs


2023-11-17T16:31:21.6142491Z --- Start tunnel (IAP)
2023-11-17T16:31:28.1159411Z ERROR: (gcloud.compute.start-iap-tunnel) Local port [57834] is not available.

Actions

The job can be re-run using re-run failed jobs

Ingress / TLS Failures

A new ingress domain is not working

When adding a new ingress domain the platform:

Creates a Cloud DNS Managed Zone. You need to set up delegation for this domain so that Cloud DNS becomes the Name server.

IPs not being allowlisted by traefik

You have configured to allowlist IPs using traefik middlewares but are still getting forbidden when accessing endpoints from a valid IP address.

Enable JSON logs

Edit traefik deployment to add the arguments:


kind: Deployment
metadata:
  name: traefik
  namespace: platform-ingress
---
spec:
  containers:
    - args:
        - --log.level=DEBUG
        - --log.format=json
        - --accesslog=true
        - --accesslog.format=json

View traefik logs


kubectl logs -f deployment/traefik -n platform-ingress

Logs:

  { "level": "debug","middlewareName": "platform-ingress-ready-ipwhitelist@kubernetescrd","middlewareType": "IPWhiteLister","msg": "Accepting IP 86.160.248.78","time": "2024-08-07T22:03:23Z" }

Check Load Balancer logs

On the Google Console navigate to Logging Explorer navigate and run the following query


resource.type="http_load_balancer" resource.labels.project_id="<your-gcp-project-id>"

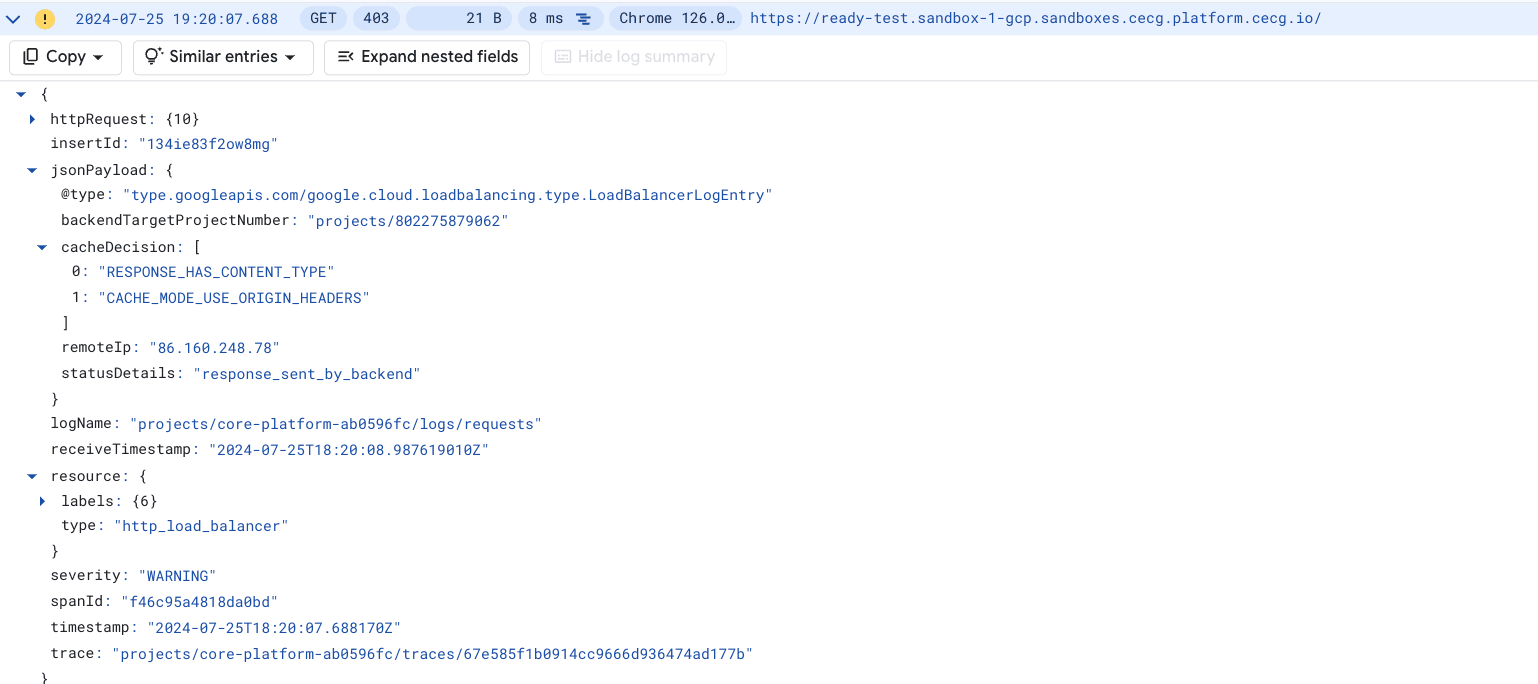

Load Balancer Logs

Actions

1. Setup DNS Zone delegation for the new domain

See dns delegation setup

2. Restart cert manager

Cert manager at times does not find the new Cloud DNS Zone. If this is the case you’ll see cert manager logs like:


E1124 04:28:57.742110       1 controller.go:167] "cert-manager/challenges: re-queuing item due to error processing" err="No matching GoogleCloud domain found for domain XXXX.XX." key="platform-ingress/ingress-tls-secure-1-2070261079-2597927957"

Restarting cert manager:


kubectl delete pods -n platform-ingress -l app=cert-manager

On restarting the error should go away. If not, raise a support ticket with the logs for:

External-DNS
Cert Manager
Output from:


kubectl get pods -n platform-ingress
kubectl get certificates -n platform-ingress
kubectl get certificaterequests -n platform-ingress
kubectl describe gateway traefik -n platform-ingress

NAT Gateway IP Allocation Failures

Are there not enough IPs allocated? Validate the root cause:
1. Single service is keeping a lot of connections open
  1. Go to Grafana platform-monitoring/NAT Gateway dashboard and check:
    1. which VM’s have unusual high open connections,
    2. which VM’s have unusual high number of allocated ports
    3. correlate this information with Network Received by Namespace graph in platform-monitoring/Kubernetes/Views/Global dashboard on Grafana. To find namespace that uses most network bandwidth, then check which pod belongs to that namespace in Network Bandwidth graph in platform-monitoring/Kubernetes/Views/Pods.
  2. [Optional] Enable NAT Gateway logging if not already enabled. Logging provides more detailed information on existing connections. To enable logs update network.publicNatGateway.logging value to one of ERRORS_ONLY, TRANSLATIONS_ONLY, ALL:
```
network:
  publicNatGateway:
    logging: TRANSLATIONS_ONLY - update to desired logging level
```
    See Configure logging for log level explanation.
2. Cluster Autoscaller is creating an excessive number of VMs. Validate in GCP dashboard, node-pools, metrics
3. The Cluster grew naturally and more source NAT IPs are required. If above are not causing the issue, validate that there is a valid reason for more IPs to be reserved and attached to the NAT Gateway. Look at long-term trends of services, node, port allocation growth.

Allocating more IP addresses might cause source IP changes to existing services for outbound requests. If third party clients allowlisted specific IPs, they’ll need to update their allowlist accordingly.

Increase the number of IPs allocated to NAT Gateway. Update number of IPs in your environments/<env_name>/config.yaml file:


network:
  publicNatGateway:
    ipCount: <number of IP's allocated> - increase this value to desired number of IP's

Release the change and validate that port utilisation went down below 70%.

Do you allocate too many min ports per VM?
1. Go to Grafana platform-monitoring/NAT Gateway dashboard and validate allocated ports per VM against used ports per VM. Ensure to extend time span to take into account all traffic spikes. If most of the time ports are being allocated but not used you can decrease the minPortsPerVm setting in environments/<env_name>/config.yaml file:
```
network:
  publicNatGateway:
    minPortsPerVm: <min number of ports allocated to single VM> - decrease this value to release ports
```
  See Choose a minimum number of ports per VM for further details.
2. If all ports are utilised, check if you can Reduce your port usage otherwise increase the ipCount value (section 1)

Increasing the number of IPs is a safe operation; the existing connections won’t be affected, however, decreasing the value without draining the connections first will cause connection being terminated immediately. See Impact of tuning NAT configurations on existing NAT connections for further details.

NAT Gateway provisioning/updates failures


Error: Error when reading or editing Address: googleapi: Error 400: External address used for NAT cannot be deleted., badRequest

During updates to your network.publicNatGateway.ipCount configuration when you try to remove already allocated IP address the update will fail. To decrease the number of allocated IPs, please drain it first then remove it from NAT Gateway manually before running IAC tool. Follow Decrease allocated number of IP addresses.

NAT Gateway high error count in logs

NAT Gateway will only log errors related to packet drops because no port was available for NAT. To investigate and resolve, follow below:

Increase the log level to ALL (if not already on this level) to get more details about successful connections (see if any of errored connections are successful)
If high errors count on packets send, check the trend of packet drops per reason in platform-monitoring/NAT Gateway Grafana dashboard, for OUT_OF_RESOURCES reason follow Packets dropped with reason: out of resources

We use manual NAT IP address assignment with dynamic port allocation

NAT Gateway high number of received packet drops

A Cloud NAT gateway drops an ingress data packet if the connection tracking table doesn’t contain any entry for the connection. Those can be due to timeouts or external endpoint trying to establish a connection. Higher number than usual might not indicate any degradation of any services.

Check long window trend of received packet drop rate in platform-monitoring/NAT Gateway Grafana dashboard. Establish which VM/pod is experiencing the highest drops, then validate it is a genuine failure. For genuine failures, see Dropped received packets for hints on how to resolve.
